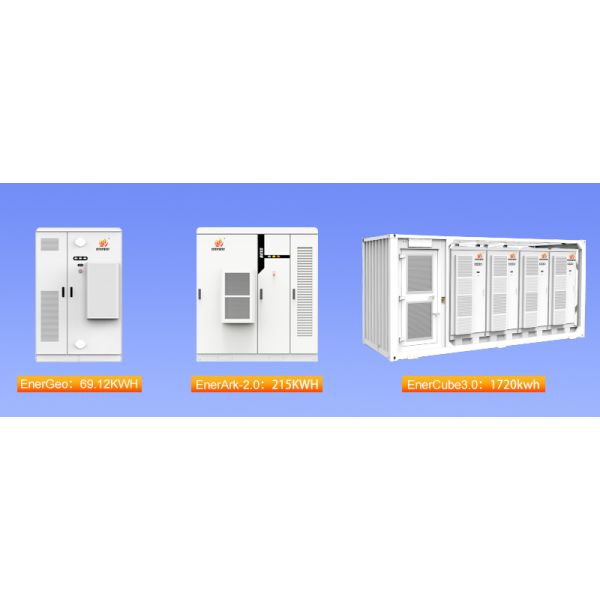

IP55 High Protection Container BESS with HVAC and Forced Air Cooling System

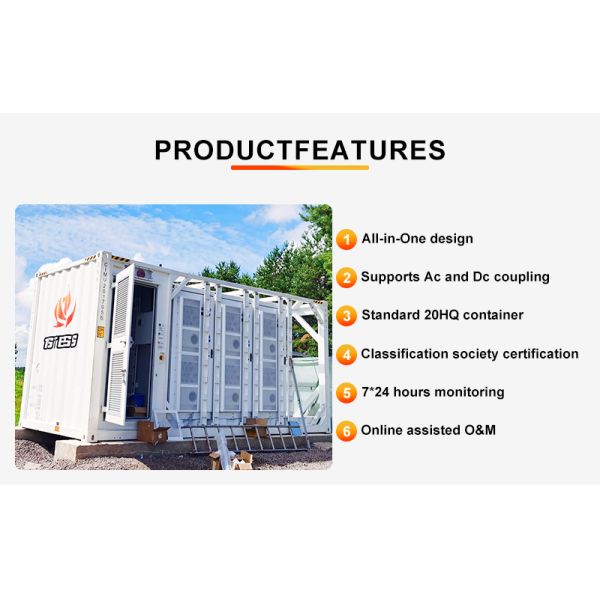

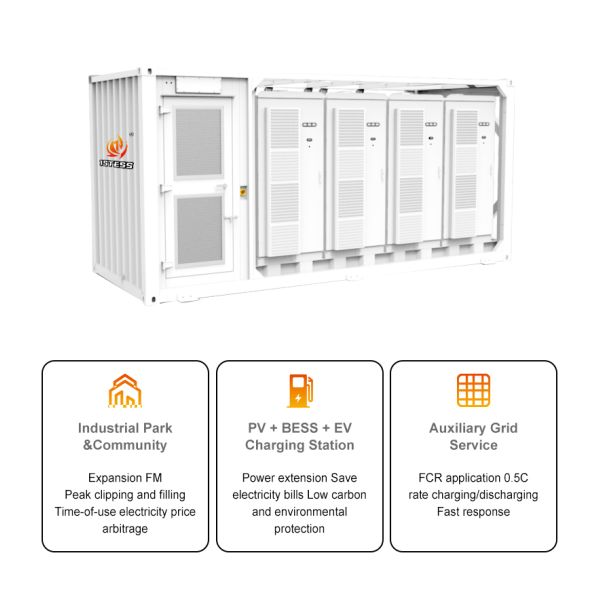

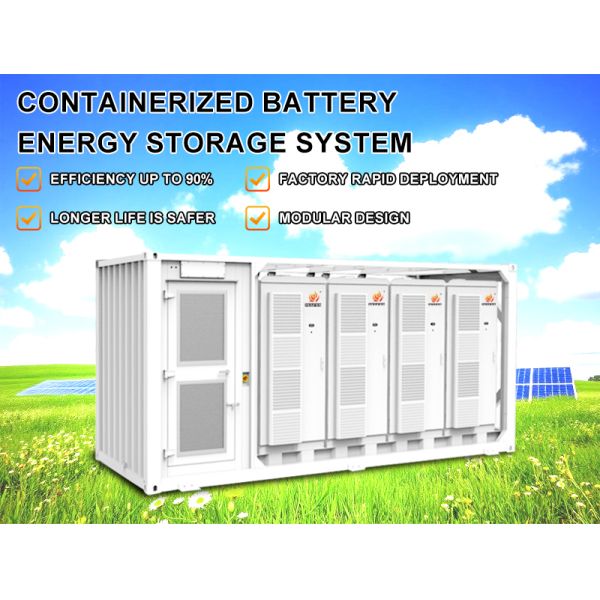

The EnerCube3.0 Container Battery Energy Storage System features an All-in-One modular design that integrates multiple critical components into a single, space-efficient solution. Utilizing a standard 20HQ container design, this system optimizes application space while facilitating transportation, hoisting, installation, and maintenance.
Integrated System Components
- Battery PACK
- Intelligent Energy Storage Converter (PCS)
- Power Distribution Unit (PDU)
- Automatic Fire Extinguishing System (FFS)
- Temperature Control System (TcS)
- Intelligent Monitoring System (IMS)
Technical Specifications
Model Capacity Comparison
| Type |
P400C860 |
P500C1075 |
P600C1290 |
P700C1505 |
P800C1720 |
| DC Side Parameters |
|
| Cell type & capacity |
LiFePO₄-280Ah |
| Battery module type |
1P20S |
| System configuration |
4*1P240S |
5*1P240S |
6*1P240S |
7*1P240S |
8*1P240S |
| Capacity (BOL) |
860kWh |
1075kWh |
1290kWh |
1505kWh |
1720kWh |
| AC Side Parameters |
|
| Grid type |
3P4W+PE |
| Rated output power |
400kW |
500kW |
600kW |
700kW |
800kW |
| Rated voltage |
AC400V |
| Rated frequency |
50/60(±5)Hz |
| Maximum output current |
577A |
722A |
866A |
1010A |
1155A |
| Harmonics |
<3% (@rated power) |
| Overload capacity |
110%, 10mins; 120%, 60s |
General System Parameters
Isolation transformer: No
Protection level: Outdoor installation (Battery cabinet: IP55, Electrical room: IP34)
Container anti-corrosion grade: C3
Operation temperature: -20℃~50℃
Relative humidity: 0~95% (non-condensing)
Permissible altitude: <2000m
Cooling method: Battery cabinet: HVAC, Electrical room: forced air cooling
Fire fighting system: FAS & FM200/Novec1230
Noise emission: ≤75dB
Dimension (W*D*H): 20HQ container (6058mm*2438mm*2896mm)
Maximum weight: 24500kg
Communication interface: Ethernet
Communication protocol: Modbus TCP/IP
Warranty: 5 years (can be extended to 10 years)
Certifications & Standards
System: UN3536, LVD, EMC, RoHS
Cell: IEC62619, UL1973, UL9540A
PACK: UN38.3
PCS: G99, EN50549, AS4777.2, VDE4105
