18650 32650 21700 Power Battery Spot Welding Machine

Full automatic welding machine designed for lithium-ion EV battery pack assembly with precision spot welding capabilities.

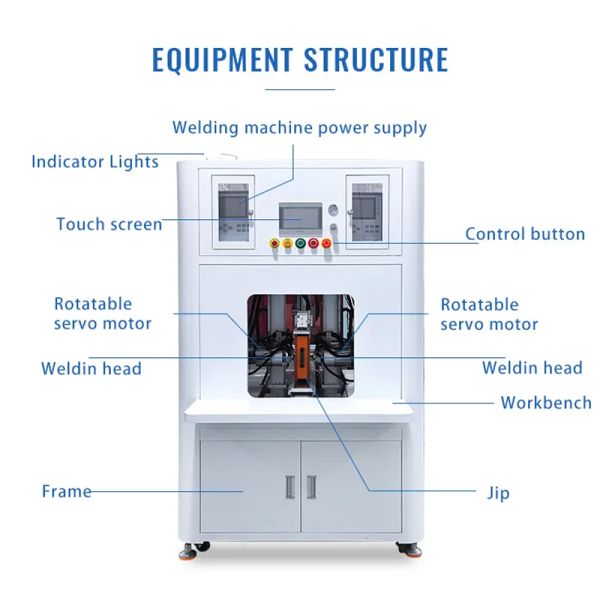

Double-Sided Automatic Spot Welder

Specifically designed for spot welding nickel sheets in power battery packs
User-friendly fixture design for easy nickel sheet placement
Fully automatic operation - machine starts spot welding when fixture is positioned
Multiple preset spot welding programs with instant recall capability
Flexible spot welding program routing without specific requirements
Stable product quality with uniform appearance results

Technical Specifications

Model	TWSL-700L
Power Supply	AC220V/AC380, 50/60Hz
Welding Power Supply	Optional (two units)
Power	1.5KW
Noise	<60dB
Dimensions	1800L × 1000W × 1800H mm
Free Stroke	600mm × 310mm
Nickel Sheet Loading	Thickness 0.1~0.2mm (confirmation required for exceeding thickness)
Production Efficiency	3500 pieces/hour
Welding Nickel Thickness	0.08-0.12mm
Positioning Accuracy	0.05mm
Control System	PLC + HMI
Programming Interface	Full Chinese LCD interface
