Spot Welding Machine Spot Welder For21700 And18650 Batterycells

Contact Now

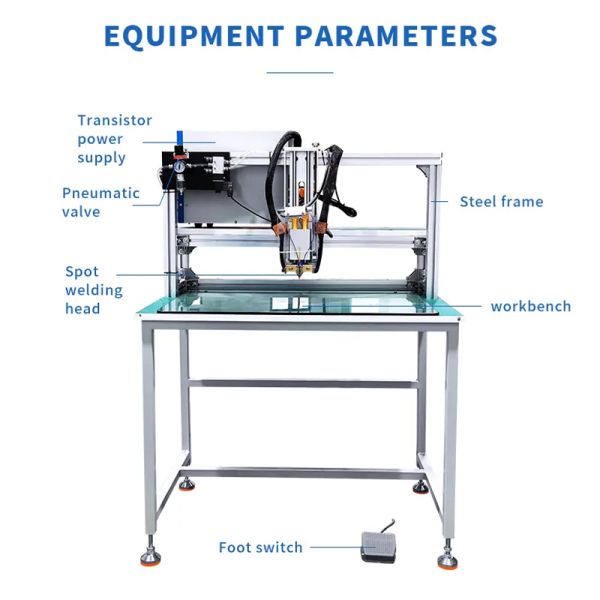

Transistor Gantry Pneumatic Spot Welding Machine for 21700 & 18650 Battery Cells

Spot Welding Machine Spot Welder For21700 And18650 Batterycells

Key Features & Benefits

Transistor power supply provides extremely fast welding current rise rate for rapid process completion
Minimal heat affected zone with no splatter during welding process
Ideal for ultra-precision welding applications including fine wire, button cell battery connectors, relay contacts, and metal foil
Three control modes: constant current, constant voltage, and combination of both
Large LCD display shows welding current, power, and electrode voltage
Built-in detection function verifies workpiece status before power-on

Technical Specifications

Model	SKXD-50
Supply Voltage	220V/380V 50Hz
Welding Time	1.0ms-20.0ms Adjustable
Maximum Output Power	25 KVA
Air Pressure	0.5-0.6MPa
Maximum Short Circuit Current	5000A
Nickel Thickness Range	0.08 mm - 0.3 mm
Welding Voltage	80.0-330V Adjustable, Accuracy 0.5V
Machine Dimensions	350×180×280mm
Weight	50Kg

Please inform us of your specific nickel thickness requirements, and we will recommend the most suitable machine for your application. We provide professional one-stop solutions including complete equipment for battery pack assembly lines.
